CUSTOM MANIFOLDS

LYNCH CUSTOM AND INTEGRATED MANIFOLD SYSTEMS

Engineered and manufactured to the highest standards of repeatable quality.

DESIGN. MANUFACTURE. INTEGRATE.

From concept or circuit drawings, Lynch’s team of hydraulic design engineers will ensure that your custom hydraulic systems are fully optimized for maximum performance and cost reduction. Complete support includes: conceptualization, engineering, component selection, 3D modeling/design, first class machining, assembly, documentation and validation. Materials include aluminum, ductile iron, brass, steel, stainless steel, and more. Together with Sun, Atos and Kawasaki, we offer complete system solutions.

THE LYNCH ADVANTAGE

  • 24/7 Flexible Manufacturing Systems producing quality products at competitive prices.
  • Conceptualization, in-house design capabilities and engineering IP Services & Support and production.
  • Over 250 years of combined manifold system experience.
  • Certified to global standards - ITAR Compliant, Controlled Goods Certificate, and DLA Military Critical Technical Data
  • The Quality Management System is part of our day-to-day culture - ISO 9001:2015 & AS9100D certified
  • Stress and flow analysis available upon request.
  • Plating & Special Coatings available upon request.
  • Availability of all cavities including ISO & DIN.
  • Manifold Materials including: Aluminum, Ductile Iron, Stainless Steel, Brass, Acrylic & more upon request.
  • Providing a single source hydraulic supplier. Solutions Based, minimizing costs and simplify logistics. Integration of a wide variety of hydraulic brands, including Sun Hydraulics, Atos Electro-hydraulics, Hydac, MOOG, MPM & more.
  • Secure Packaging & On-Time Delivery.

SPECIAL COATINGS

CODE DESCRIPTION SPECIFICATION TYPE CLASS COLOUR THICKNESS
A1 Sulphuric anodizing MIL-A-8625 II 1 Clear
A2 Sulphuric anodizing MIL-A-8625 IIB 2 Black
A4 Thin sulphuric anodizing MIL-A-8625 IIB 2 Gold
N1 Electroless Nickel ASTM B733-04 IV 1   0.0002" - 0.0003"
P1 Passivation per AMS 2700 M 1/2 AMS 2700 M 1/2 N/S N/S N/A N/A
Z1 Zinc-Nickel ASTM B841-99 A 1 Colourless (blue bright) 0.0003" - 0.0005"
Z4 Zinc-Nickel ASTM B841-99 D 1 Black Chromate with Silver 0.0003" - 0.0005"
Z5 Zinc-Nickel ASTM B841-99 D 1 Black Chromate no Silver 0.0003" - 0.0005"
Note: Special finish codes are to be added at the end of the part number
Example: HA250SH090**SFU/A2 – Aluminum Header with Black Sulphuric Anodizing
In today's dynamic global markets, you need partners who can help provide you that competitive edge! In the hydraulic motion control world, Lynch Fluid Controls can be your differentiator!
CERTIFICATIONS SUCCESS STORY CONTACT LYNCH

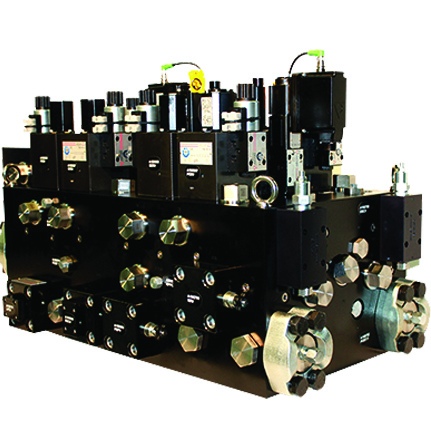

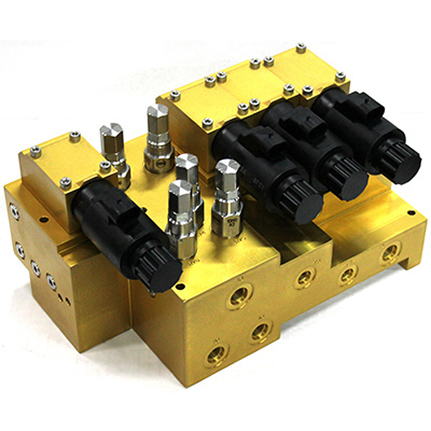

Military tank in warehouse Gold plated custom manifold Helicopter on Helipad Black custom manifold
