DIGITAL DISPLAY PROPORTIONAL VALVE DRIVER
DDPDX PRODUCTS
Shop Now

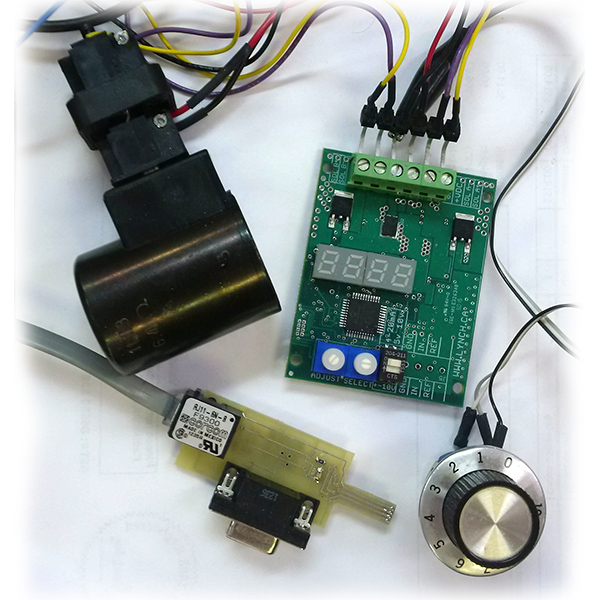

The Lynch family of Digital Display Proportional Valve Drivers offers accurate and intuitive proportional control of an output current to a proportional valve from a potentiometer, joystick, PLC or other control system allowing for a smoother operation.
CE and RoHS certified
This product has been designed and tested to meet specific standards outlined in the European Electromagnetic Compatibility Directive (EMC) 2004/108/EC
Emission: EN 61000-6-4: 2007, EN 55011:2009
Immunity: EN 61000-6-2: 2005, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-4, EN 61000-4-8:2001
RoHS: EN 50581:2012
Declaration of Conformity

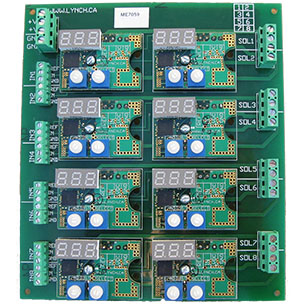

Eight circuit boards
ME7059 - Eight Driver Board
An Array of 8 LE PGX boards mounted on a mountable 5 3/4" X 6 1/2" PCB. Capable of running all drivers in one location.
Two prong control box for DDPD products
ME7066 - Two Potentiometer DDPD Control Box
DDPDX VALVE DRIVERS SOLD SEPARATELY. Lynch DDPD Control Box containing 2 potentiometers which operate 2 DDPDX units independently. Includes voltage supply adapter 110VAC to 24VDC. Two pot DDPD control box with built In power supply.

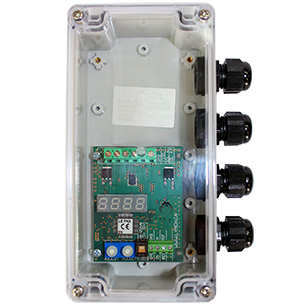

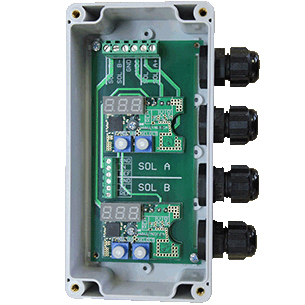

Two Driver in NEMA four X box
ME7067 - 2 Driver in NEMA 4X Box
2 DDPDX Drivers in a LE PIX size Nema 4X enclosure. 2 small board drivers in NEMA 4X (weather proof) box.

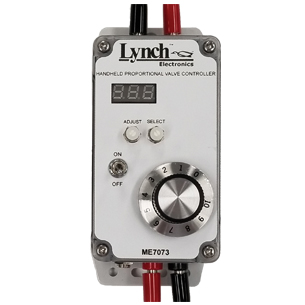

Portable proportional valve tester
ME7073 - HandPro
Portable device can be used to quickly setup, test and evaluate proportional valves. Includes Lynch DDPDX driver, ON/OFF power supply switch and Potentiometer Control Knob. Available with Banana Plug or Cable Gland connections.

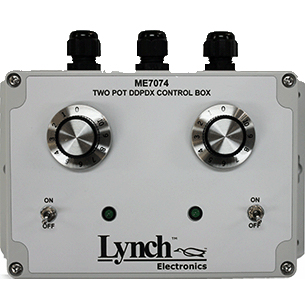

Two DDPDX control box unit
ME7074 - 2Pot2 Control Box
Two DDPDX drivers contained in one enclosure. Separate ON/OFF supply switches for each driver. LED power indicator, Potentiometer Control Knobs. Mountable Enclosure.
