Research and Development Test Facility (RADTF)

FROM CONCEPT TO INNOVATION

The RADTF innovative versatile team provides research and development, testing, and integration services for hydraulic components to full system assemblies.

To help ensure your motion-control products and solutions function at peak efficiency, our service benefits include a safe solution, saving you time & money, and optimizing operational efficiencies for all your motion control needs!

SERVICES INCLUDE

Hydrostatic/Pressure testing Services
- Up to 150,000 PSI (10000 BAR)
Functional Testing Services
- 5,000 PSI (345 BAR) Functional Hydraulic Testing up to 30 GPM Continuous or 150+ GPM
In-house Cartridge Valve Setting
System Integration with Electronics
3D Printed Components (Metal & Plastic)
Hydraulic Conditioning & Monitoring
Witness Testing
Fatigue Testing
Integration Testing
Flushing & Cleaning
Pressure Intensifiers
Designing manifold assemblies
Validating schematics, 3D Models, circuits
Finite Elements Analysis (FEA)
Computational Fluid Dynamics (CFD) Analysis
Designing hydraulic, motion control Test Programs
Research and Development Support Programs
Hydraulic-Electronic Integration capabilities
Prototype development

CAPABILITIES
	Pump One	Pump Two	Pump Three	Pump High Pressure	Accumulators

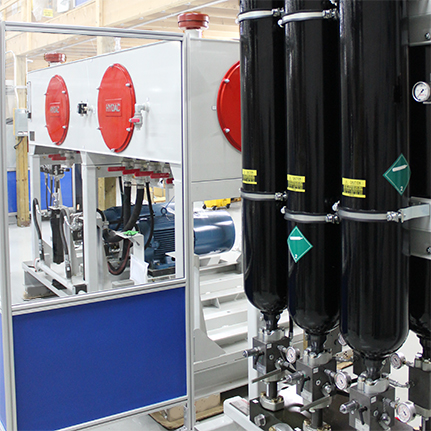

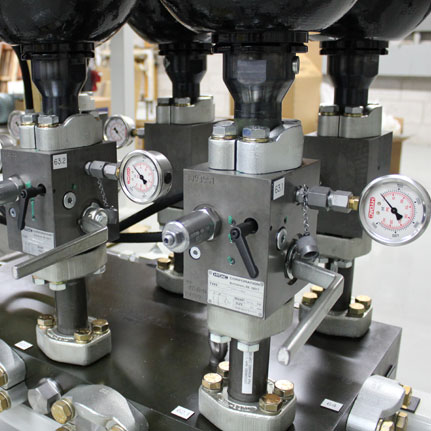

Motor	50 HP and up to 3600 RPM	50 HP and up to 3600 RPM	50 HP and up to 1775 RPM (Full torque) and 2600 RPM (Significantly less torque)	7.5 HP and up to 3345 RPM	6 * 15 gallon (5000 PSI) Output Discharge: 240 GPM Manual Pressure: 60,000 PSI generator with burst pressure testing and CRN.
Pump	Rated Pressure 4875 PSI	Rated Pressure 4875 PSI	Rated Pressure 3771 PSI	Rated Pressure 10152 PSI
Max Displacement	15.26 GPM	15.26 GPM	~28 GPM	0.557 GPM

Please contact us for your custom testing requirements. We will be glad to help you!
