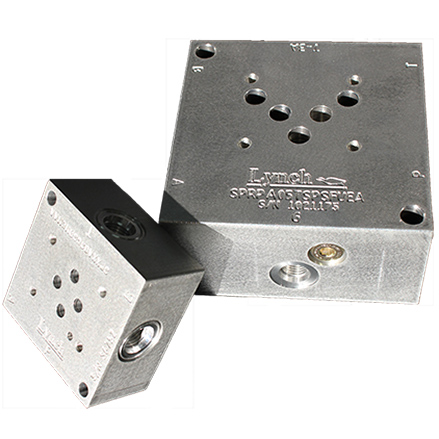

SUBPLATES

FEATURES AND BENEFITS

• Port spacing has been maximized and aligned simplifying the installation of piping and minimizing space requirements.
• There is no variation in design layout for each Model, regardless of Port Code.
• All D05H and D05HE Subplates are designed with dual tank ports on the solenoid interface in order to maximize valve performance.
• Pilot ports and/or gauge ports are never on the same face as the work ports; a configuration which grants the user more space and convenience when assembling the hydraulic system.
• Clearance holes are located outside the solenoid valve interface limits wherever possible in order to facilitate valve assembly prior to mounting the subplate.
• Internal galleries have been maximized in order to minimize pressure drops and fluid velocities.
• Port spacing has been maximized and aligned simplifying the installation of piping and minimizing space requirements.
• No variation in design layout for each Model regardless of Port Code.
• Gauge Ports on Pressure Port are standard in order to facilitate the setting of the relief valve.
• "05T" Code provides dual tank ports without the pilot ports for D05H(E) designs for higher performance applications.

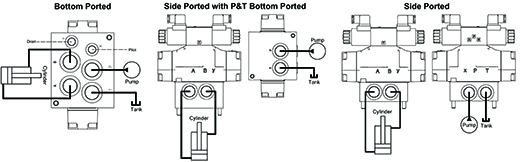

• "ST" Porting Style includes additional tank port on side in addition to bottom NPT tank port.
• Subplates with Circuits such as "P" Port Check With and Without Reliefs, Reducer on "P" Port and Cross-Line reliefs on "A" and "B" Ports are available. Please contact Factory for Part Numbers.
• Servo Subplates are available.
• Subplates for Gasket Mount Reliefs, Pressure Reducers, Flow Controls, etc. are available.
